How to work with Insert Menu in PDFill PDF Editor

Overview | First | Previous | Next | Last

Insert Menu

Use Saved PDFill Objects	See How to Save, Manage and Use the PDFill Objects
Single Line Text	Click left mouse button to the baseline of the new single line text to insert a SingleLine Text.
Multiple Line Text	Drag the left mouse button to draw a text area to insert MultipleLine Text.
Check Box	Click left mouse button to the center of a check box to insert a Check Box.
Image or PDF Page	Signature Image from File	Drag the left mouse button to draw an area to insert an Signature Image from a file. This image will use Multiply Blend so that the signature background looks alike transparent.
	Image from File	Drag the left mouse button to draw an area to insert an Image from a file.
	Image from Clipboard	Drag the left mouse button to draw an area to insert an Image from Clipboard.
	Image from Scanner	Scan Paper form into PDFill to create a new PDF. There are 3 options: Select Source, Acquire and Scanner Page Setting.
	Insert PDF Page like Image	Insert a PDF page into current document page and rotate, transform, scale, or crop the inserted page just like the way as you work on an image.
	Use Saved Objects	See How to Save, Manage and Use the PDFill Objects
Link	Drag the left mouse button to draw a area to insert a Hyperlink.
Whiteout	Drag the left mouse button to draw a area to insert a Whiteout.
Highlight	Drag the left mouse button to draw a area to insert a Highlight.
PDF Drawing	Draw Line	Hold Left mouse button to create the first point. Move the mouse and release to create the second point.
	Draw Arrow	Hold Left mouse button to create the first point. Move the mouse and release to create the second point.
	Draw Rectangle	Drag the left mouse button to draw area to Draw a rectangle
	Draw Circle	Drag the left mouse button to draw area to Draw a circle
	Call Out	Draw a callout into a PDF document

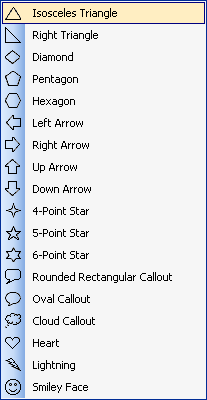

		Draw Basic Shapes: Basic Shape Drawings include Isosceles Triangle, Right Triangle, Diamond, Pentagon, Hexagon, Left Arrow, Right Arrow, Up Arrow, Down Arrow, 4-Point Star, 5-Point Star, 6-Point Star, Rounded Rectangular Callout, Oval Callout, Cloud Callout, Heart, Lightning and Smiley Face. Drag the left mouse button to draw area to Draw a basic shape.
		Draw Curve or Signature: The curve types includes Smooth Curve, Straight Curve, Smooth Scribble, Straight Scribble, Smooth Freeform, Straight Freeform, Cloud Tool and Drawing Pen. You can edit each curve point and open/close the curve. Hold down the left mouse button where you want to begin drawing. You can release the mouse button, move the pointer to a new location, and continue drawing.
	Curve Eraser Tool	Curve Eraser Tool to erase a curve or point.
	Show Drawing Toolbar	Show/Hide Drawing Toolbar
PDF Ink Annotator	Insert Ink using Pen Mode
	Insert Ink using Marker Mode
	Insert Ink using Highlighter Mode
	Ink Selection Mode
	Ink Deletion Mode
	Undo Ink
	Redo Ink
	Erase all Ink in Pen and Marker Mode
	Erase all ink in Highlighter Mode
	Pressure-Sensitive Pen (Supporting hardware required)
	Auto Smooth Free Hand to Straight lines
	Set Ink's Default Properties
PDF Barcode	QR Code
	Data Matrix
	PDF 417
	POSTNET or PLANET Barcode
	CODABAR Barcode
	Code 39 and Code 39 Extended Barcode
	Interleaved 2 of 5 Barcode
	EAN/UPC Barcode
	EAN/UPC with Supplement Barcode
	Code 128 Barcode
